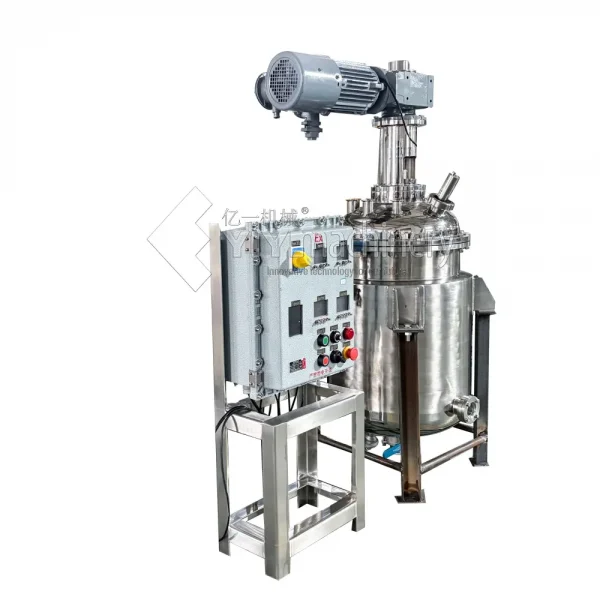

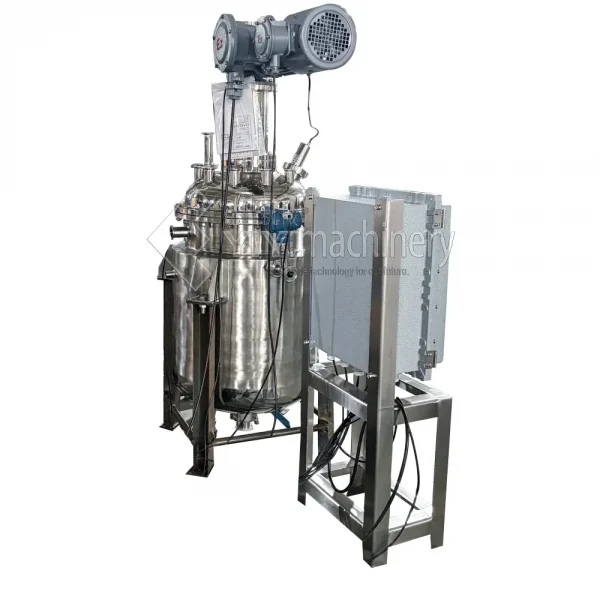

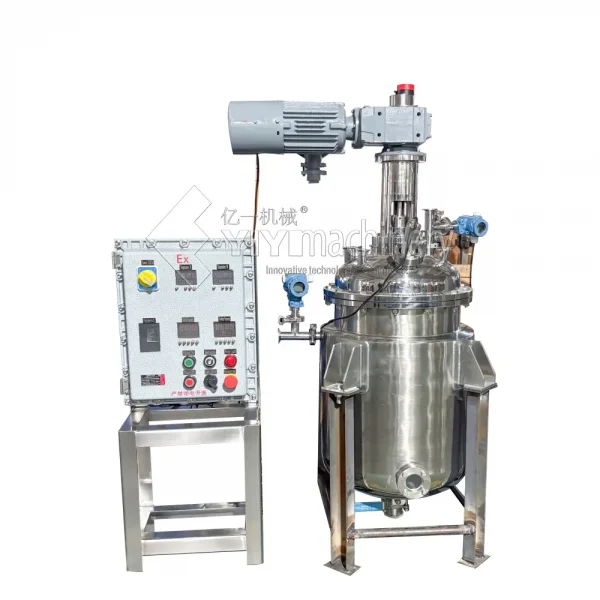

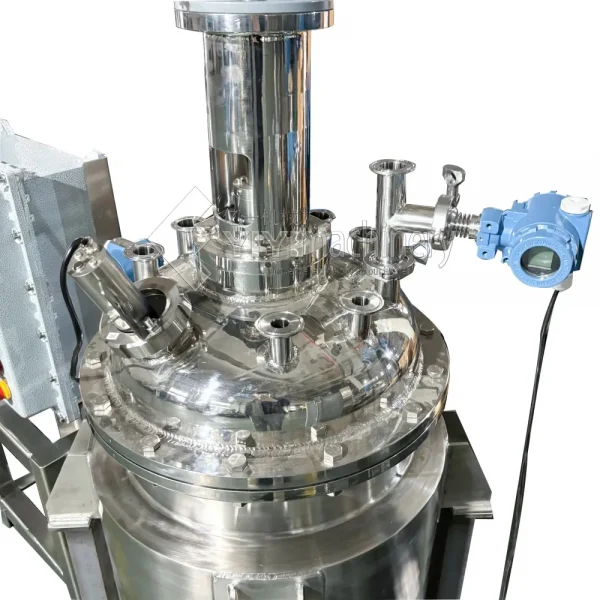

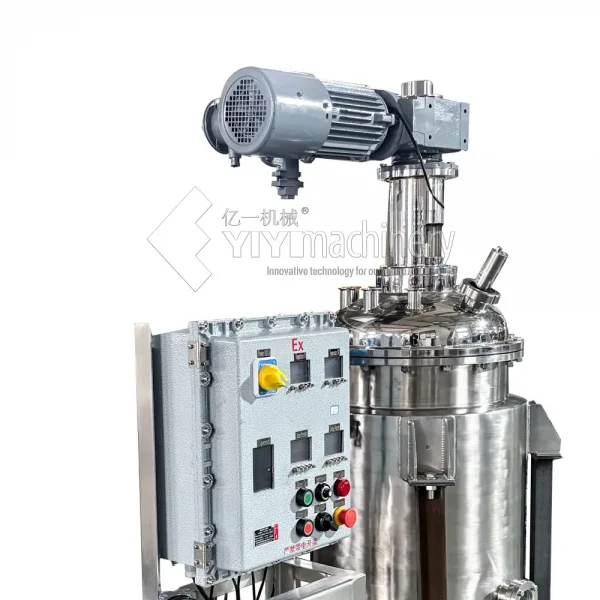

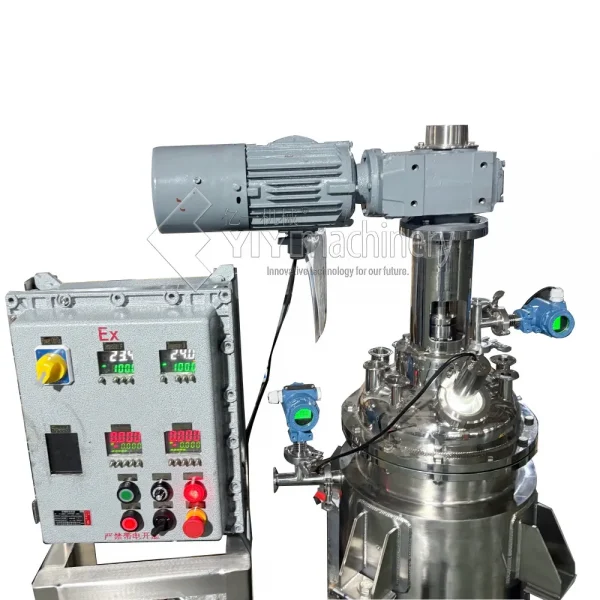

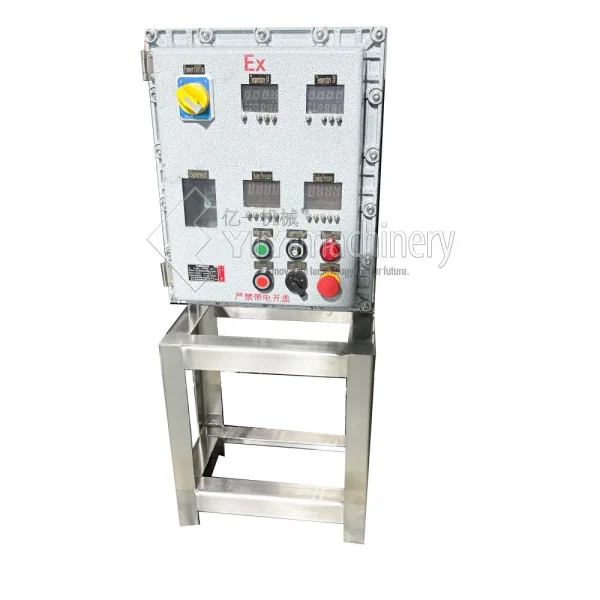

100L reactor
The 100L reactor is a versatile industrial equipment widely used in oil, chemical, rubber, pesticide, dye, medicine and food industries. It is suitable for vulcanization, oxidation, alkylation, polymerization and condensation processes, providing a stable and efficient reaction environment.
Product Overview
The 100L reactor is a versatile industrial equipment widely used in oil, chemical, rubber, pesticide, dye, medicine and food industries. It is suitable for vulcanization, oxidation, alkylation, polymerization and condensation processes, providing a stable and efficient reaction environment.
Technical Parameters
The 100L reactor is manufactured to strict quality standards, with advanced configurations ensuring reliability, durability and operational safety.
Body Material: High-quality SS304 or SS316L stainless steel. SS304 offers good general corrosion resistance; SS316L (with molybdenum) has better chloride ion corrosion resistance for harsh corrosive conditions.
Structure: Three types available: open flush cover, open welded flange, and closed. Open types enable easy feeding, inspection and maintenance (low pressure/low leakage); closed type has excellent sealing for high pressure and sterility requirements.
Composition: Consists of body, tank cover, jacket, agitator, transmission, shaft seal and supports. Jacket controls temperature; agitator ensures uniform mixing; transmission and shaft seal guarantee stable operation and sealing.
Surface Treatment: Mirror polishing (easy to clean, meets GMP/FDA standards for food/medicine) or wire drawing (wear-resistant, industrial appearance).
Optional Configurations
A full range of optional configurations is available for customization, enabling precise control and safer operation:
Sterile Filter: Removes microorganisms, ensuring reaction sterility (essential for pharmaceutical/food industries), with 0.2μm+ microporous membranes.
Thermometer (Digital/Dial): Real-time temperature monitoring; digital (high accuracy, clear display), dial (simple, reliable).
PH Meter: Continuously detects pH value, enabling timely adjustment for stable product quality (suitable for pH-sensitive processes).
Sanitary Manhole: Facilitates interior inspection/cleaning, hygienic (no dead corners), compliant with food/pharmaceutical standards.
Outlet: Optimized for smooth discharge, reducing residue, with optional specifications for different materials.
Cleaning Ball: Efficiently cleans reactor interior, avoids cross-contamination, compatible with CIP procedures, reduces manual work.
Technical Specifications
| Model | Volume (L) | Inner pot size (mm) | Outer pot size (mm) | Motor power (KW) | Mixing speed (R/m) |
| YRK-50 | 50 | 400 | 600 | 1.1 | 60-80 |
| YRK-100 | 100 | 500 | 700 | 1.5 | 60-80 |
| YRK-200 | 200 | 600 | 800 | 2.2 | 60-80 |
| YRK-300 | 300 | 700 | 900 | 3 | 60-80 |
| YRK-500 | 500 | 900 | 1100 | 4 | 60-80 |
| YRK-1000 | 1000 | 1200 | 1400 | 5.5 | 60-80 |
| YRK-2000 | 2000 | 1500 | 1700 | 7.5 | 60-80 |
| YRK-3000 | 3000 | 1600 | 1800 | 15 | 60-80 |
| YRK-5000 | 5000 | 1800 | 2000 | 15 | 60-80 |
| YRK-10000 | 10000 | 2000 | 2200 | 18 | 60-80 |
The material and size is customizable. Or tell us your requirements and we will suggest the suitable product.
