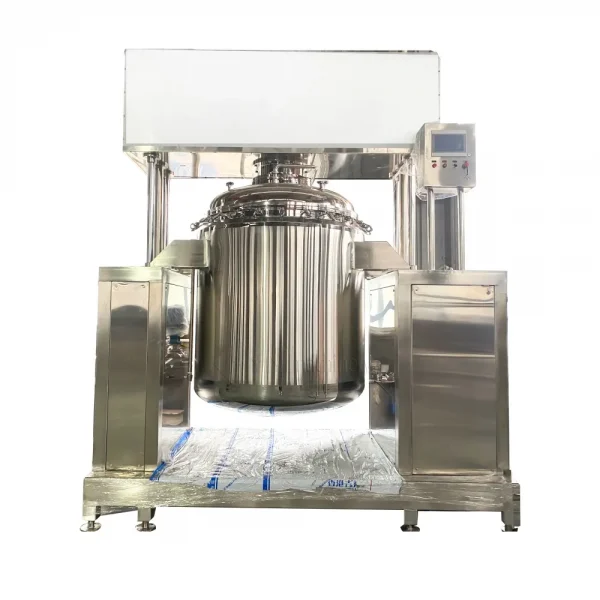

Lifting mixing tank
Stainless steel mixing tanks are essential in various industries, including food, pharmaceuticals, chemicals, and brewing, for blending, mixing, and homogenizing liquids and solids. These tanks are renowned for their excellent corrosion resistance, high durability, and ease of cleaning, ensuring a sanitary process environment.
Optional Product Configurations
- Tilting design

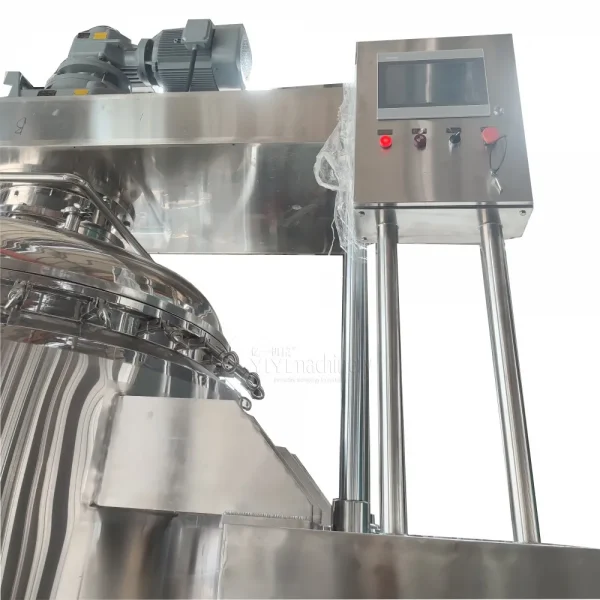

- Integrated Control Panel

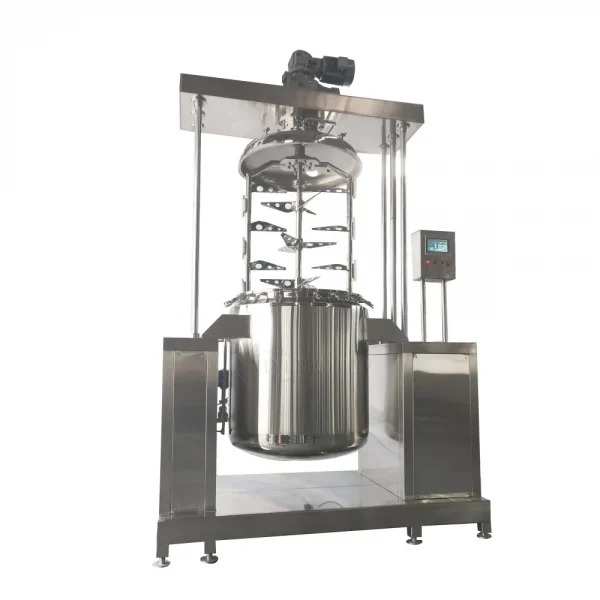

- Equipped with a stirring device
- Heating structures (concave type, semi-tubular type)
- Cooling structures (concave type, semi-pipe type)
- Weighing sensor
- Liquid level switch
- Cleaning interface
- skid-mounted structure
- Multiple surface treatment grades are available
- Multiple materials are available (304 stainless steel, 316L stainless steel, duplex stainless steel).
Types of stirring devices
- Guillotine mixer
- Anchor mixer
- Wall scraper mixer
- Paddle mixer
- Bottom-drive mixer
- Distributed disk
- Stator and rotor
- Screw mixer
- Combined stirring device
- High-shear emulsifier
- Turbine mixer
- Side-entry mixer
- Static mixer
- External homogenizer
The material and size is customizable. Or tell us your requirements and we will suggest the suitable product.
Specifications Table
| Model | Volume (L) | Dimensions (mm3) | Motor power (kw) | Speed (r/min) |
| YMT-T-50P | 50 | 400×400×1600 | 0.55 | 120 |
| YMT-T-100P | 100 | 500×500×1700 | 0.75 | 120 |
| YMT-T-200P | 200 | 700×500×1800 | 1.1 | 120 |
| YMT-T-500P | 500 | 9500×1100×2000 | 1.5 | 120 |
| YMT-T-1000P | 1000 | 1000×1200×3300 | 2.2 | 120 |
| YMT-T-2000P | 2000 | 1200×1500×3200 | 3 | 100 |
| YMT-T-5000P | 5000 | 1800×1800×4000 | 5.5 | 36 |
| YMT-T-10000P | 10000 | 2400×3600×6000 | 7.5 | 36 |
