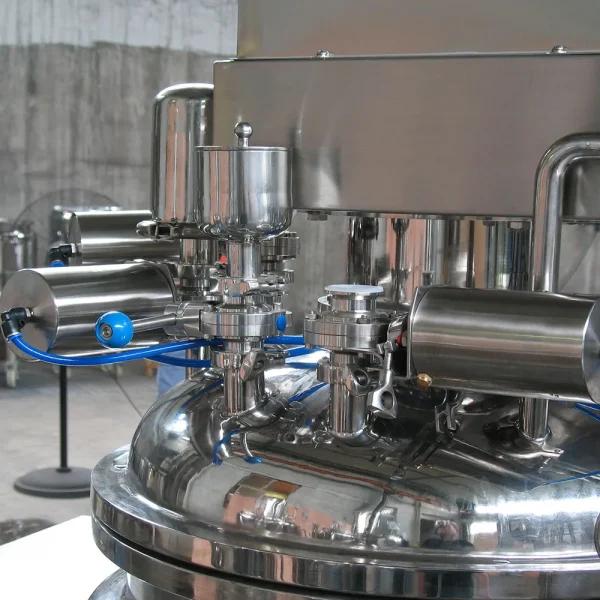

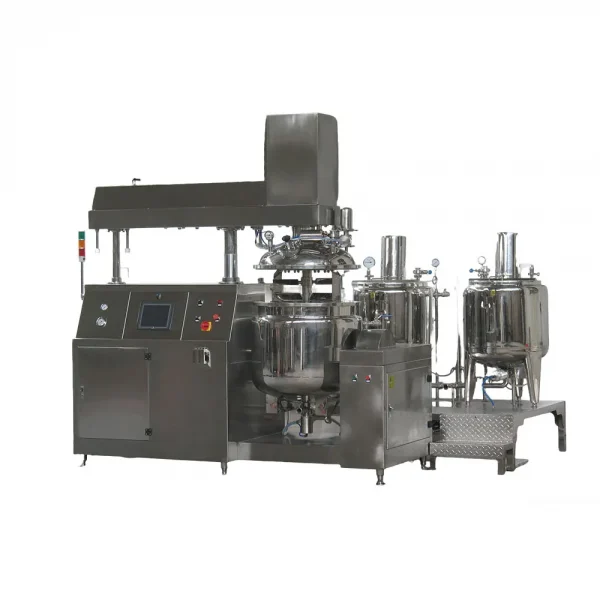

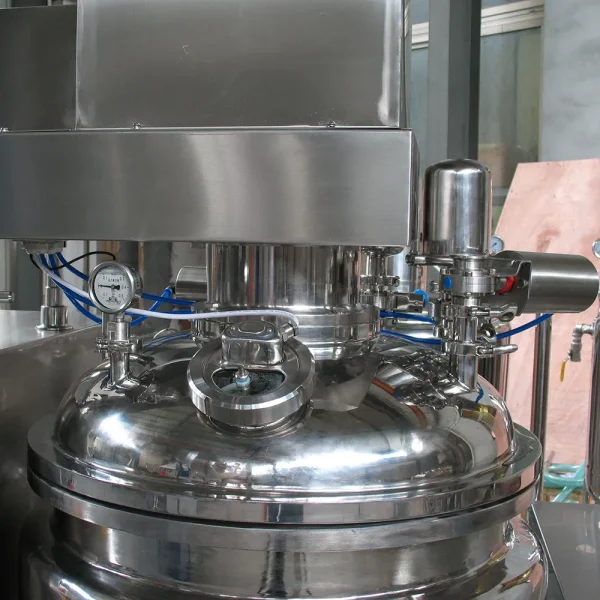

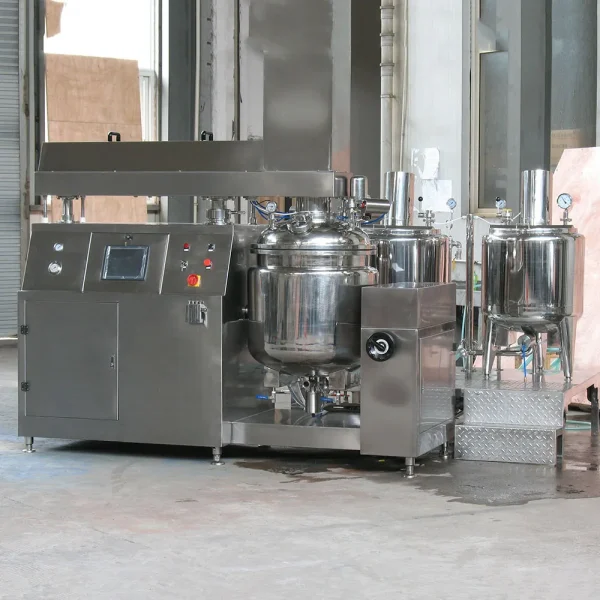

Emulsification Tank

The emulsification tank is to dissolve one or more materials in another liquid phase and hydrate it into a relatively stable emulsion. The homogeneous agitator of the emulsification tank can be used in conjunction with central blade agitation, wall scraping agitation, etc. to form the best agitation method. The tank body adopts a vertical round tank body, which can be made into a honeycomb jacketed coil jacket or an integral jacket, which can be heated. The bottom of the cooling tank can be sloped, so it can be dried and emptied. The material of stainless steel is made of 316L or 304.

Application

It is suitable for the production of cosmetics, medicine, food, chemical dyeing, printing oil black and other industrial products, especially for the emulsification of materials with high matrix viscosity and relatively high solid content, which is more effective.

Feature

Compact structure, small sizeand weight,
Easy to operate
Low noise, stable operation
Energy saving, fast material mixing.
Process openings for inlet and outlet nozzles, sight mirrors, manholes.
Smooth and easy to clean, electrolytic mirror polishing or mechanical polishing
Meet the requirements of GMP and other.
The volume isvarious specifications meeting any requirement.

The material and size is customizable. Or tell us your requirements and we will suggest the suitable product.

Product Parameters

Model	Volume (L)	Power (KW)	Dimensions (mm³)	Vacuum （MPA）
YEMT-100	100	45	2750×2700×3100	-0.09
YEMT-200	200	60	3100×3000×3450	-0.09
YEMT-300	300	67	3500×3350×3600	-0.085
YEMT-500	500	83	3850×3600×4000	-0.08
YEMT-1000	1000	116	4200×3850×4800	-0.08
YEMT-1500	1500	125	4600×4000×5000	-0.08
YEMT-2000	2000	140	4850×4300×5400	-0.08

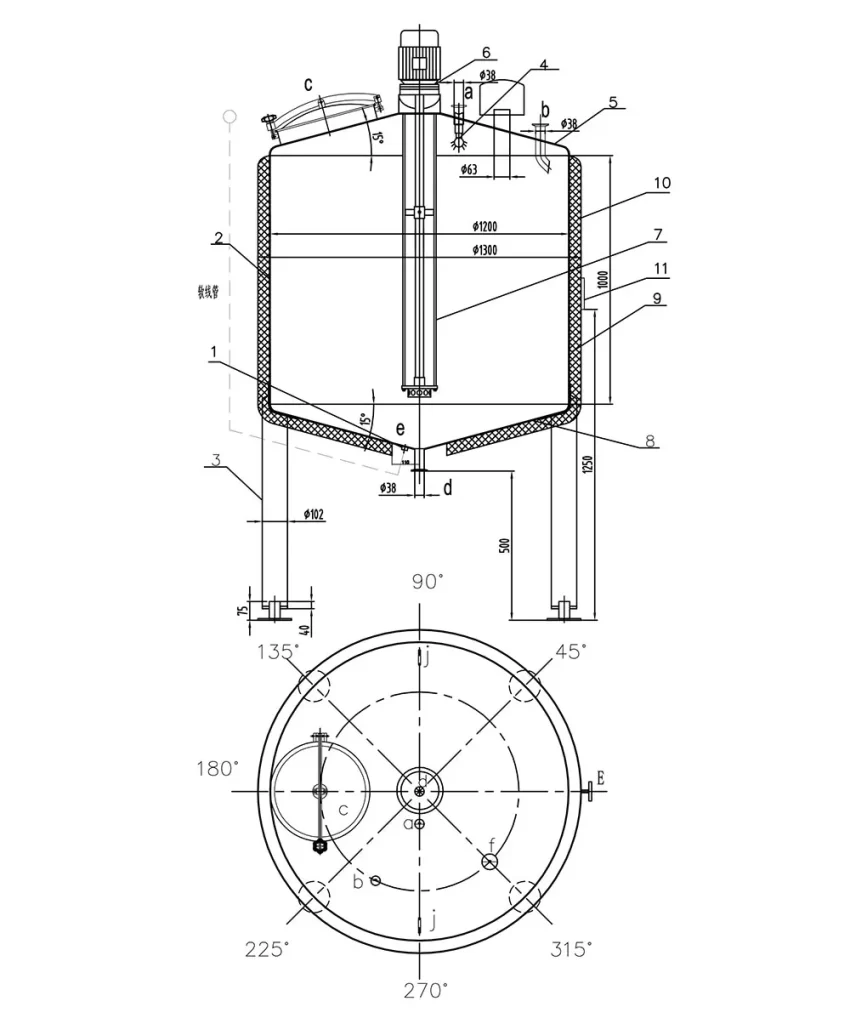

Product Dimensions
