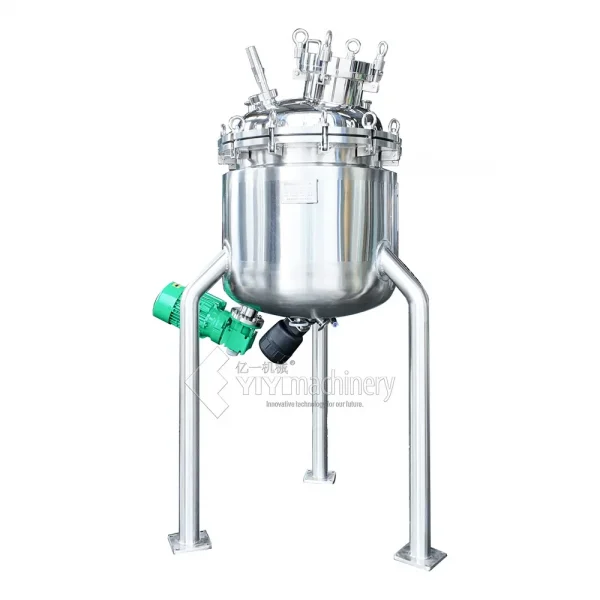

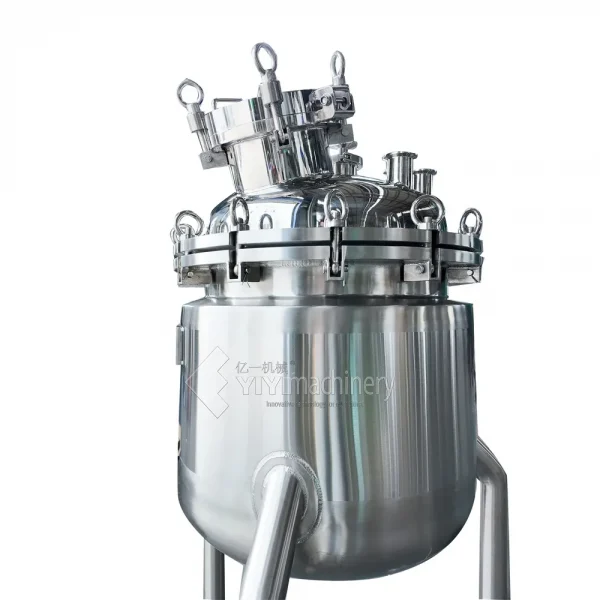

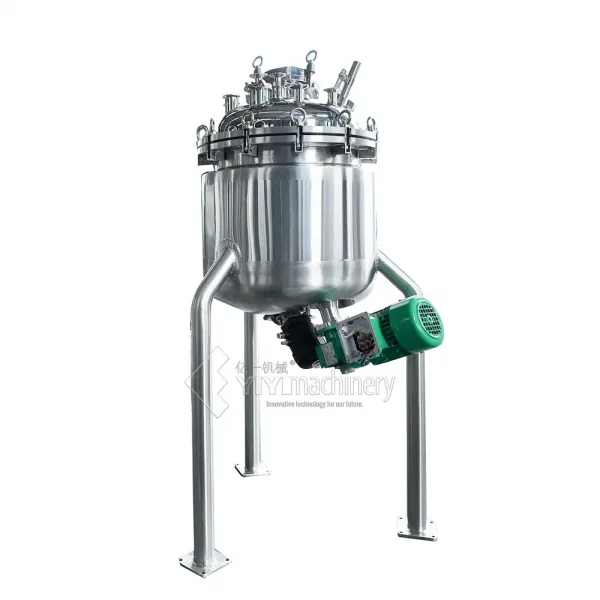

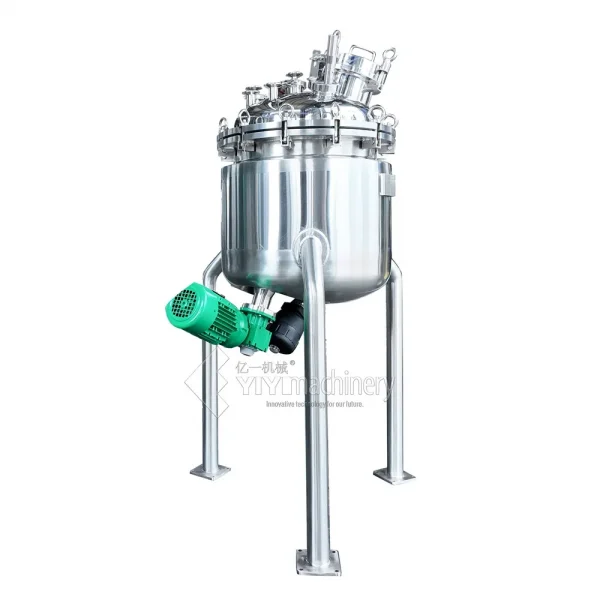

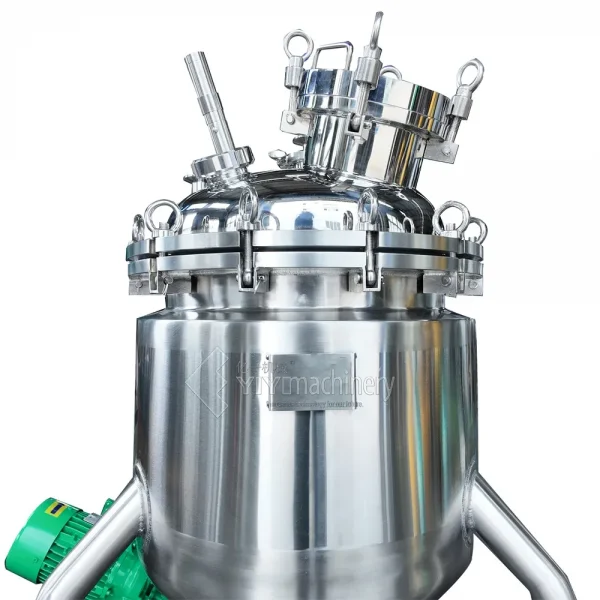

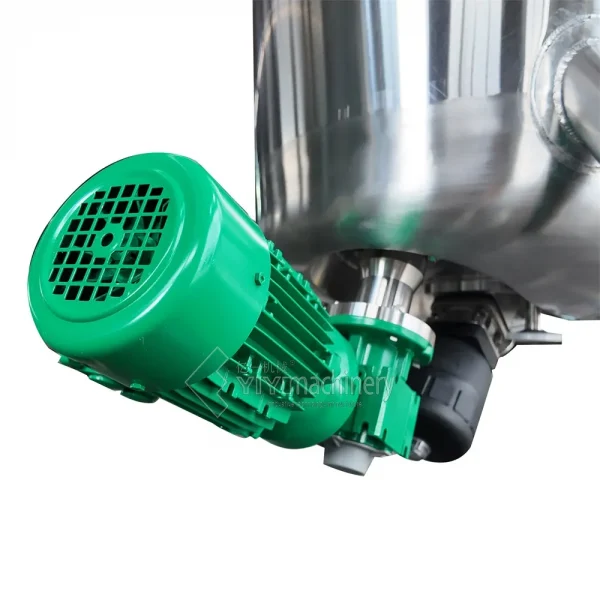

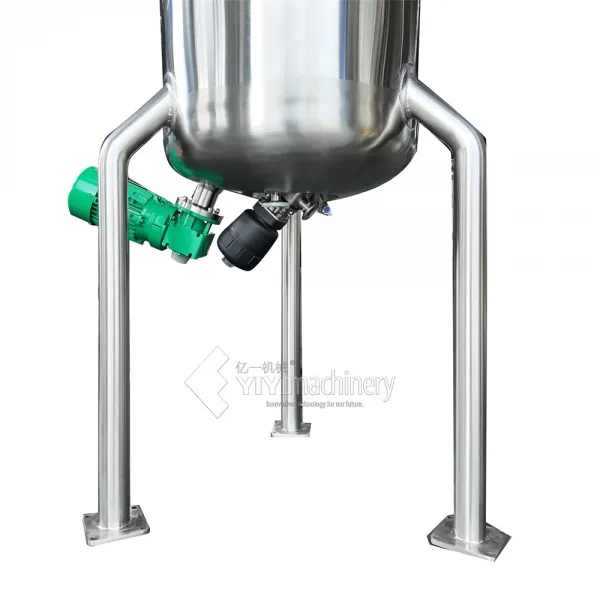

50L Magnetic Stirring Jar

Stainless steel magnetic stirring tanks are sterile, leak-free, and easy-to-clean mixing/reaction equipment. Their core advantages lie in magnetic coupling drive, no mechanical seals, zero leakage, and compliance with GMP hygiene standards. The mainstream material is 316L stainless steel, and common volumes include 50L. They are widely used in pharmaceutical, bio-fermentation, food and daily chemical, and fine chemical industries.

Category:

Options

  • Tiltable
  • Integrated control panel
  • Agitators
  • Heated (Dimple, Halfpipe)
  • Cooled (Dimple, Halfpipe)
  • Loadcells
  • Level Switches
  • Cleaning connections
  • Skid mounted
  • Several finishing levels
  • Several materials (304, 316L, Duplex)

Agitators

  • Gate agitator
  • Anchor agitator
  • Scraping agitator
  • Propeller agitator
  • Bottom driven agitator
  • Dispersing disk
  • Rotor/stator
  • Screw agitator
  • Combination of agitators
  • High shear mixer
  • Turbo mixer
  • Side entry agitator
  • Static mixer
  • External homogenizer

Specifications Table

Model Volume (L) Dimensions (mm3) Motor power (kw) Speed (r/min)
YMT-T-50P 50 400×400×1600 0.55 120
YMT-T-100P 100 500×500×1700 0.75 120
YMT-T-200P 200 700×500×1800 1.1 120
YMT-T-500P 500 9500×1100×2000 1.5 120
YMT-T-1000P 1000 1000×1200×3300 2.2 120
YMT-T-2000P 2000 1200×1500×3200 3 100
YMT-T-5000P 5000 1800×1800×4000 5.5 36
YMT-T-10000P 10000 2400×3600×6000 7.5 36

Reviews

There are no reviews yet.

Be the first to review “50L Magnetic Stirring Jar”

Your email address will not be published. Required fields are marked *

Need a Custom Mixing Tank Solution?

Materials, tank size, jacket type, finishing level and agitator configuration can be customized according to your production process. Tell us your requirements, and our engineers will recommend the suitable solution.

304 / 316L / Duplex Custom Volume Jacket Options Agitator Selection
